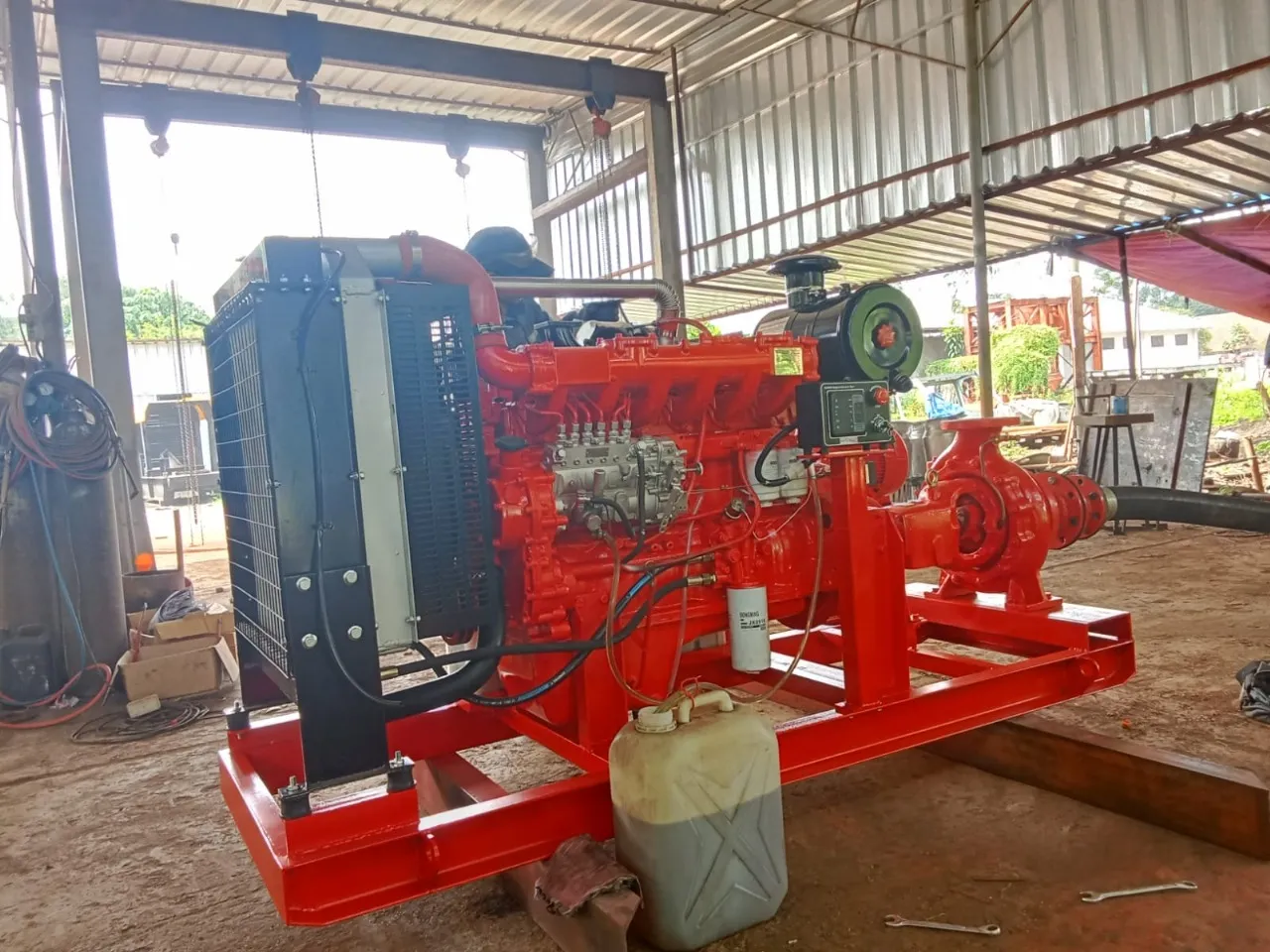

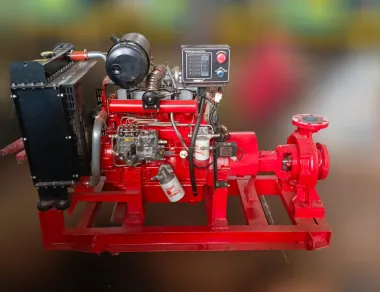

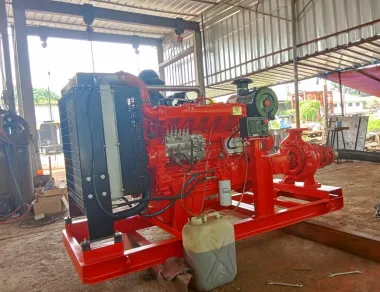

DIESEL FIRE PUMP 500 GPM @ 100 METER
DEFENDER
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
:
:
:
:
:
:
:
:
MODEL : DFP.500.10-DEF55-30
CAPACITY : 500 GPM (113 m³/h)
HEAD : 100 Meter (10 Bar)
1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Defender (Isuzu Technology)
Model : 4DEF2.5TDI-D80
Power : 82 kW
Speed : 3000 RPM
Cyl - Bore * Stroke :4 - 93* 102 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS50-315
Impeller diameter : 302 mm
Shaft Power : 49 Kw
Inlet * outlet : 2.5 inch * 2 inch
Kelengkapan standard:
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Couplig Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 12V
7. Daily Fuel Tank 200L
CAPACITY : 500 GPM (113 m³/h)
HEAD : 100 Meter (10 Bar)
1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Defender (Isuzu Technology)
Model : 4DEF2.5TDI-D80
Power : 82 kW
Speed : 3000 RPM
Cyl - Bore * Stroke :4 - 93* 102 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS50-315
Impeller diameter : 302 mm
Shaft Power : 49 Kw
Inlet * outlet : 2.5 inch * 2 inch
Kelengkapan standard:
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Couplig Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 12V
7. Daily Fuel Tank 200L
