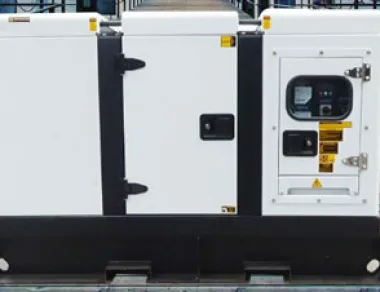

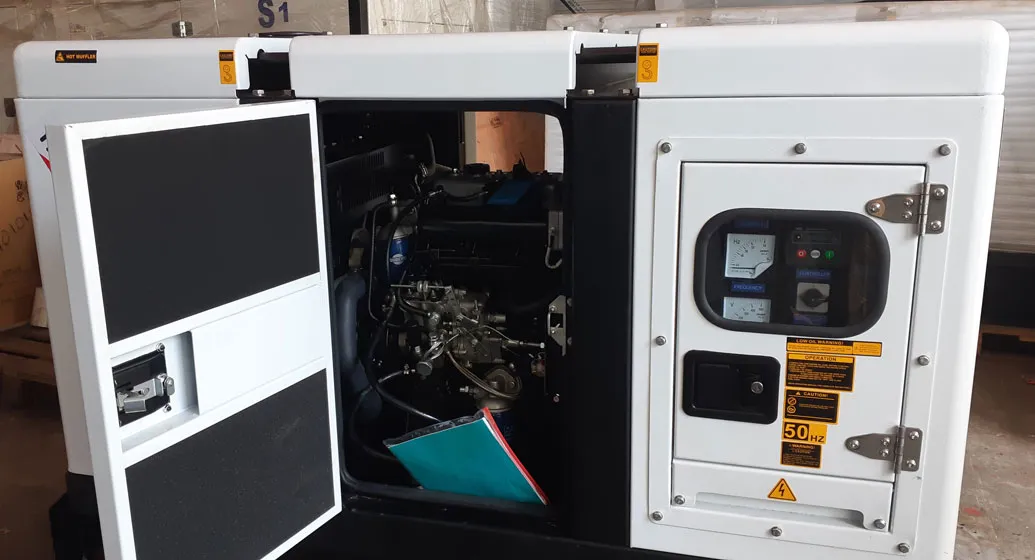

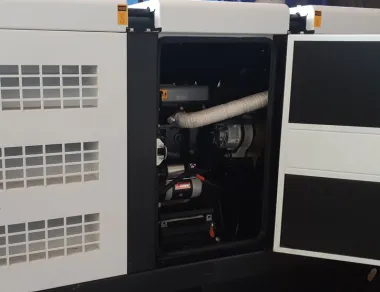

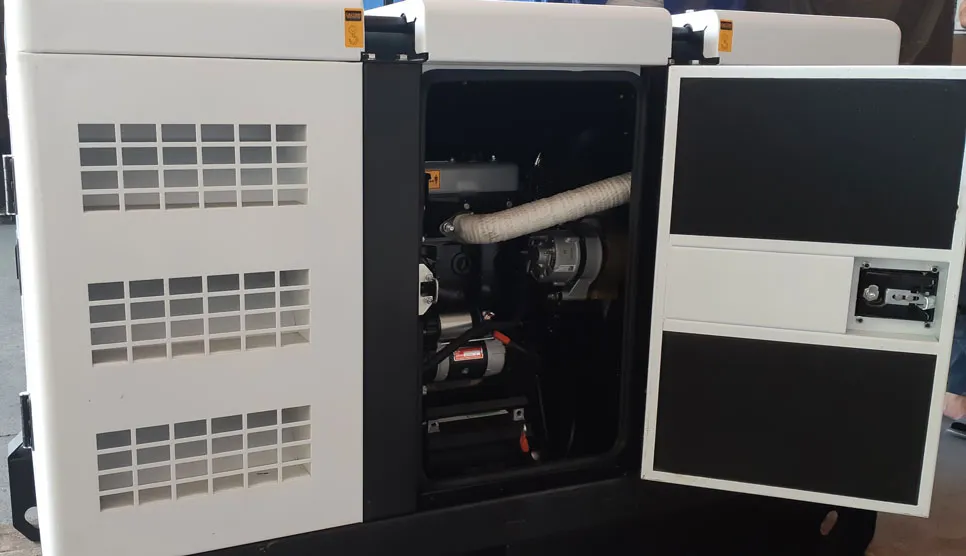

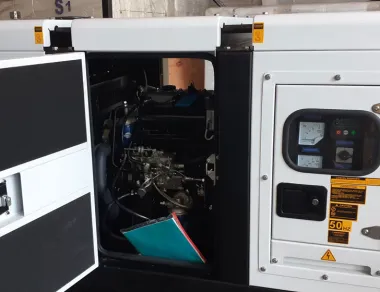

Genset Diesel 30 kW 3 phase
Rp 82.500.000,- ......... Nego !!!!!
Rp 82.500.000,- ......... Nego !!!!!
YAMAKOYO
| GENSET MODEL | YX-20 |
| Rated Power (KW) | 20 |
| Max Power (KW) | 22 |
| Rated Current (A) | 38 |
| Rated Voltage (V) | 220/380 |
| Frequency (HZ) | 50 |
| Rated Speed (RPM) | 1500 |
| ENGINE MODEL | K4100D |
| Rated Output (KW) | 30,1 |
| Governing Method | MECHANICAL |
| Bore x Stroke (mm) | 100*115 |
| Intaking Method | Natural Aspirated |
| Oil Volume (L) | 13 |
| Fuel Consumption | 248,8 |
| Fuel Consumption (L/H) | 8,7 |
| Oil Consumption (L/H) | 2,04 |
| Displacement L | 4,15 |
| Compression ratio | 17:1 |
| Water Volume (L) | 25 |
| Cooling System | Closed water cooled |
| Starting Method | D.C 12V or 24V electric start |
| ALTERNATOR MODEL | BC184ES |
| Power Factor | 0,8 lagging for 3-Phase |
| Phase / Connection | 3-Phase 4-Wire connected |
| Excitation Method | Brush/Brushless Excitation |
| Insulation Class | H |
| Protection Class | IP21 |
| Voltage Regulation | Automatic |
| CONTROL SYSTEM | DeepSea DSE3110 |
| Dimension and Weight | |
| Net Weight | 820 |
| Dimension (m/ Open type) | 1,65x 0,67 x 1,2 |
| Net Weight | 1120 |
| Dimension (m/ SIlent type) | 1,95 x 0,9 x 1,25 |
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
xmlns:x="urn:schemas-microsoft-com:office:excel"
xmlns="http://www.w3.org/TR/REC-html40">
style='border-collapse:collapse;table-layout:fixed;width:316pt'>
xmlns:x="urn:schemas-microsoft-com:office:excel"
xmlns="http://www.w3.org/TR/REC-html40">
| GENSET MODEL | YX-20 |
| Rated Power (KW) | 20 |
| Max Power (KW) | 22 |
| Rated Current (A) | 38 |
| Rated Voltage (V) | 220/380 |
| Frequency (HZ) | 50 |
| Rated Speed (RPM) | 1500 |
| ENGINE MODEL | K4100D |
| Rated Output (KW) | 30,1 |
| Governing Method | MECHANICAL |
| Bore x Stroke (mm) | 100*115 |
| Intaking Method | Natural Aspirated |
| Oil Volume (L) | 13 |
| Fuel Consumption | 248,8 |
| Fuel Consumption (L/H) | 8,7 |
| Oil Consumption (L/H) | 2,04 |
| Displacement L | 4,15 |
| Compression ratio | 17:1 |
| Water Volume (L) | 25 |
| Cooling System | Closed water cooled |
| Starting Method | D.C 12V or 24V electric start |
| ALTERNATOR MODEL | BC184ES |
| Power Factor | 0,8 lagging for 3-Phase |
| Phase / Connection | 3-Phase 4-Wire connected |
| Excitation Method | Brush/Brushless Excitation |
| Insulation Class | H |
| Protection Class | IP21 |
| Voltage Regulation | Automatic |
| CONTROL SYSTEM | DeepSea DSE3110 |
| Dimension and Weight | |
| Net Weight | 820 |
| Dimension (m/ Open type) | 1,65x 0,67 x 1,2 |
| Net Weight | 1120 |
| Dimension (m/ SIlent type) | 1,95 x 0,9 x 1,25 |
:
:
:
:
:
:
:
:
Anugrah Diesel kembali menghadirkan Genset Diesel dengan harga terjangkau
Genset Diesel Engine
Merk : Yamakoyo by Anugrah Diesel
Engine : Weifang / Weichai
Alternator : Copy stamford
Daya : 30 kW / 30.000 Watt (Full Load)
- Harga belum termasuk PPN 10%
- Garansi 1 Tahun / 2000 Jam
- Harga dan stock tidak mengikat dan dapat berubah sewaktu-waktu
- Harga franco gudang jakarta
Genset Diesel Engine
Merk : Yamakoyo by Anugrah Diesel
Engine : Weifang / Weichai
Alternator : Copy stamford
Daya : 30 kW / 30.000 Watt (Full Load)
Price List -------------- Rp 82.500.000
Hubungi kami untuk mendapatkan harga terbaiknya
- Harga belum termasuk PPN 10%
- Garansi 1 Tahun / 2000 Jam
- Harga dan stock tidak mengikat dan dapat berubah sewaktu-waktu
- Harga franco gudang jakarta
