ATL 9 PKN
PERKINS
| TECHNICAL DATA | |||
| Model | : ATL-9PKN | ||
| Engine Brand | : PERKINS | ||
| Engine Type | : 403A-11G1 | ||
| Prime Power | : 9 kVA | ||
| : 7,2 kW | |||
| Standby Power | : 10 kVA | ||
| : 8 kW | |||
| Rated Speed | : 1500 RPM | ||
| Standart Voltage | : 400/230 V | ||
| Output Frequency | : 50 hz | ||
| Bore | : 77 mm | ||
| Stroke | : 81 mm | ||
| Displacement | : 1,131 L | ||
| Fuel Consumption | : 100% prime power | : 2,7 (L/H) | |
| : 75% prime power | : 2,0 (L/H) | ||
| : 50% prime power | : 1,5 (L/H) | ||
| HARGA GENSET PERKINS 9 KVA OPEN TYPE | |||
| Hubungi Kami | |||

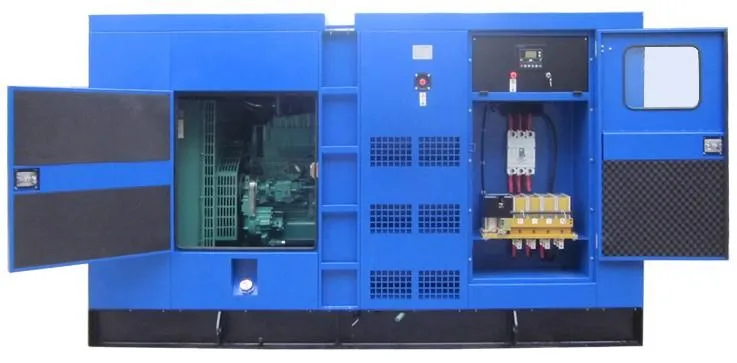

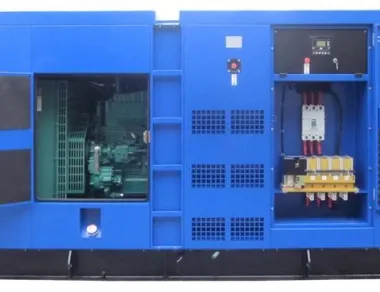

| HARGA GENSET PERKINS 9 KVA SILENT TYPE | |||
| Hubungi Kami | |||
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
