DIESEL FIRE PUMP 500 GPM @ 80 METER
DEFENDER
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
:
:
:
:
:
:
:
:
MODEL : DFP.500.8-DEF45-30
CAPACITY : 500 GPM (113 m³/h)
HEAD : 80 Meter (8 Bar)

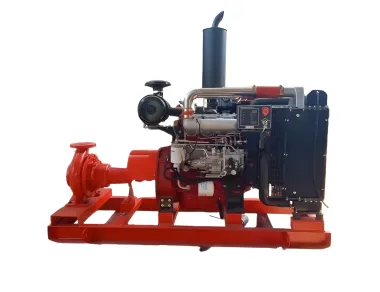

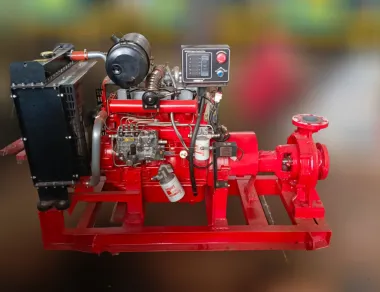

1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Defender (Isuzu Technology)
Model : 4DEF2.5TDI-D60
Power : 66 kW
Speed : 3000 RPM
Cyl - Bore * Stroke :4 - 90 * 102 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : 100 x 80 FSJA
Shaft Power : 45 Kw
Inlet * outlet : 4 inch * 3 inch
Kelengkapan standard:
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Couplig Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 12V
7. Daily Fuel Tank 200L
